Steel structures and structural steel are all around us, like tall buildings and big bridges. These steel structures utilize steel parts that can hold heavy weights and last many years. Structural steel is the main material in these designs. It’s made with carbon, which makes it strong yet bendable, perfect for today’s buildings.
Why is structural steel so important? Let’s check the facts. Using recycled steel can lower pollution by up to 35%. Additionally, reusing steel in building helps the environment significantly. Steel structures are strong and useful, which is why structural steel is so popular in construction projects.
Steel structures act like a building's skeleton, but they use steel instead of bones. These frameworks are built by joining steel parts like beams, columns, and plates. They are strong enough to carry heavy loads. You can find them in tall buildings, bridges, and stadiums. Steel is tough and can survive bad weather, earthquakes, and time.
Engineers use different methods to design steel structures safely and efficiently. Here’s a comparison:
Design Approach | Key Features | Effects on Performance |
Traditional First-Order Analysis | Treats parts separately, causing waste and safety risks. | May lead to unsafe designs and extra material use. |
Advanced Second-Order Analysis | Includes deformation and forces, improving design efficiency. | Boosts safety and performance with smarter analysis. |
Modern techniques, like second-order analysis, make steel structures safer and cheaper. This helps create stronger buildings while saving materials.
Structural steel is the main material used in steel structures. It’s made for construction because it’s strong, flexible, and lightweight. It can be shaped into beams, columns, or even decorations.
Here’s a simple table showing common types of structural steel and their uses:
Steel Grade | Yield Strength (psi) | Uses |
A36 | 36,000 | Beams, columns, and floor decking |
A572 | 50,000 - 65,000 | Bridges and power towers |
A588 | Higher than A36/A572 | Outdoor projects, resists rust |
A514 | 100,000 | Heavy loads, cranes, and machines |
Structural steel is strong and flexible. You can weld, bolt, or shape it easily. It saves money by lowering foundation costs and speeding up construction. Modern structural steel also has coatings to resist fire and water, keeping buildings safe.
What’s the difference between steel structures and structural steel? Think of structural steel as the ingredient and steel structures as the finished product. Structural steel is like flour, and steel structures are the cake.
Here’s a quick comparison:
● Steel Structures: These are buildings or frameworks made from steel, like bridges or warehouses.
● Structural Steel: This is the raw material shaped into beams, columns, or plates.
In short, structural steel is the base material, and steel structures are the result. Together, they create strong, lasting, and versatile buildings for modern construction.
Steel structures come in different shapes for various purposes. Let’s look at three common types: steel frame structures, steel truss structures, and steel arch structures.
Steel frame structures are the backbone of modern buildings. They use steel beams and columns to make strong frameworks. You’ll see them in tall buildings, warehouses, and homes. Why are they so common? They’re strong, last long, and are quick to build.
Here’s why steel frame structures are special:
● They need little care. Steel doesn’t rot or get moldy.
● They’re eco-friendly. Steel can be recycled, helping the planet.
● They save time. Pre-made steel parts speed up building work.
Think about building a tall office. Steel frames make it strong and affordable. Steel’s strength-to-weight ratio lets you build taller without extra weight. That’s why architects and engineers love steel frames.
Steel truss structures focus on balance and support. They use triangles to spread weight evenly. This makes them great for bridges, stadium roofs, and big buildings. You’ve likely crossed a bridge with steel trusses without noticing!
Here are some famous projects using steel trusses:
Project Name | Owner | Architect | Structural Engineer | General Contractor |
Orange County Museum of Art | Orange County Museum of Art, Calif. | mOrphosis Architects | John A. Martin & Associates, Inc. | Clark Construction Group |
Milwaukee World Festival (Summerfest) | Milwaukee World Festival, Inc. | Eppstein Uhen Architects | Larson Engineering, Inc. | Hunzinger Construction |
Martin Selig Real Estate | Martin Selig Real Estate, Seattle | Perkins & Will | KPFF Consulting Engineers | Lease Crutcher Lewis |
Steel trusses are useful and flexible. They cover large spaces without extra supports. This makes them perfect for arenas or concert halls. Steel trusses give strength and flexibility for big projects.
Steel arch structures mix beauty and strength. Arches have been used for ages, but steel makes them better. Modern steel arches are strong and look amazing. They spread weight evenly, making them great for bridges, tunnels, and decorations.
Did you know steel arched windows are trendy in modern designs? They add beauty and function to homes and offices. Moving from stone arches to steel shows how far design has come.
Here’s why steel arches work so well:
Aspect | Details |
Historical Significance | Romans improved arches, allowing bigger, detailed buildings. |
Structural Advantages | Arches spread weight evenly, staying stable and strong. |
Modern Applications | Steel arches update old designs for today’s architecture. |
Steel arches are more than just strong—they’re stylish. Whether for a bridge or office, steel arches combine strength and beauty perfectly.
Steel cable structures are strong and flexible. They use stretched steel cables to hold up buildings, bridges, and roofs. These cables work like tight ropes, keeping everything together while staying light. You’ve likely seen them in suspension bridges or stadium roofs.
Why are steel cable structures so useful? They handle heavy loads and stay stable during earthquakes. Engineers say these structures make buildings safer, especially in earthquake-prone areas. This makes them a smart pick for big projects.
Here’s why steel cable structures are special:
● Lightweight Design: Steel cables lower the structure’s weight, making building easier.
● Flexibility: They move with the building, which helps in earthquakes.
● Aesthetic Appeal: Steel cables look modern and stylish in cities.
Imagine walking on a suspension bridge held by steel cables. You’d feel safe knowing the cables can handle stress and movement. These structures mix beauty and strength, making them popular with architects and engineers.
Steel space frame structures are like 3D puzzles made of steel rods. They create strong frameworks that are light but tough. You’ll see them in airports, stadiums, and big halls.
Why are space frames so good? Their design spreads weight evenly, lowering stress on parts. Engineers use smart methods to make space frames strong while using less steel.
Here are some cool examples:
Case Study/Analysis | Key Features | Structural Efficiency |
Large-Span Sports Venues | Smooth steel pipes, welded beams | Handles > 5 tons/member |
Lijiang Airport T3 Terminal | Welded sphere nodes | Spans over 270 meters |
Shanghai Stadium | Three-way space frame system | Cuts steel use by 20% |
National Stadium, France | Cable systems | Better earthquake safety |
Space frames aren’t just strong—they’re flexible. They let architects design big spaces without needing lots of columns. Whether it’s a stadium or airport, steel space frames bring strength, style, and efficiency.
Light gauge steel structures are great for eco-friendly building. They use thin steel sheets shaped into studs and tracks. These are perfect for homes, offices, and hospitals.
Why choose light gauge steel? It’s strong, flexible, and fireproof. It’s also affordable, making it ideal for low-cost projects. Urban growth and new tech like Building Information Modeling (BIM) are boosting demand for these systems.
Here’s why light gauge steel is popular:
● Sustainability: It’s eco-friendly, which governments and companies love.
● Versatility: It works for homes, malls, and hospitals.
● Safety: It’s fireproof and safe for disaster-prone areas.
● Innovation: Tech like 3D printing makes building faster and more precise.
Picture a house built with light gauge steel. It’s strong enough for storms and flexible for creative designs. These structures are changing construction, offering strength and eco-friendliness together.
Pre-engineered steel structures (PES) are like construction superheroes. They are made in factories and sent to sites for quick assembly. If you’ve seen a mall or warehouse built fast, it’s likely a PES.
You might ask, “What makes them so great?” Here’s why:
● Speed: PES saves time. Parts are pre-made, so building is faster.
● Cost-Effective: They cost less. Pre-designed parts cut labor and material costs.
● Customizable: You can adjust designs. Need a bigger space or cool roof? Easy!
Think of PES like giant LEGO sets. Engineers design them, factories make the parts, and workers assemble them on-site.
Here’s how it works:
Step | What Happens |
Design | Engineers plan the structure based on your needs. |
Fabrication | Factories create the steel parts with accuracy. |
Transportation | The parts are delivered to the building site. |
Assembly | Workers connect the pieces using bolts and welds. |
You’ll find PES in many places, such as:
1. Industrial Buildings: Factories, warehouses, and workshops.
2. Commercial Spaces: Offices, malls, and showrooms.
3. Agricultural Projects: Barns and storage sheds.
4. Sports Facilities: Indoor arenas and stadiums.
If you want something fast, cheap, and eco-friendly, PES is perfect. They use less steel, cutting waste. Plus, they’re strong and handle bad weather well.
Whether it’s a factory or stadium, PES offers a modern, efficient way to build. They’re changing construction, one project at a time.
Ever think about why structural steel is so strong? It’s because of its mix of elements. Structural steel is mostly iron, with small amounts of carbon, manganese, silicon, phosphorus, and sulfur. Each element helps make the steel tough, bendable, and long-lasting.
Here’s a simple table of what’s in structural steel:
Element | Content (%) |
Manganese (Mn) | 1.60 max |
Silicon (Si) | 0.50 max |
Carbon (C) | 0.12 max |
Phosphorus (P) | 0.025 max |
Sulfur (S) | 0.015 max |
Manganese makes steel tougher, and silicon adds strength. Carbon, even in tiny amounts, is key. It decides how hard or soft the steel is. Too much phosphorus or sulfur can weaken the steel, so their levels are kept low.
The strength of structural steel isn’t just about its mix. It’s also about how it performs under stress. It’s strong, flexible, and durable, making it great for buildings and bridges.
Here’s a comparison of two common types of structural steel:
Property | ASTM A36 | ASTM A572-50 |
Yield Point (psi) | 36,000 | 50,000 |
Tensile Strength (psi) | 58,000-80,000 | 65,000 |
Elongation % (200 mm) | 18% | 20% |
Structural steel goes through many tests to ensure it’s safe. For example:
● Ultrasonic Testing: Finds hidden cracks using sound waves.
● Charpy V-Notch Test: Checks how much energy steel absorbs before breaking.
● Brinell Hardness Test: Measures how hard the steel is by pressing a ball into it.
These tests make sure steel can handle tough conditions.
Carbon may be a small part of structural steel, but it’s very important. More carbon makes steel harder and stronger. But too much carbon can make it less flexible and easier to break.
Here’s how carbon works:
● It changes how steel bends under pressure.
● It makes steel harder to break by stopping cracks from spreading.
● In some steels, carbon even helps them stretch without breaking.
For example, steel with more carbon can have a tensile strength of 1,192 MPa and stretch by 33%. This balance of strength and flexibility makes structural steel useful for many projects.
Understanding carbon’s role shows why structural steel is so amazing in modern construction.
Structural steel grades show how strong and flexible the steel is. Each grade works best for certain projects. Grades are labeled with numbers like S275 or S355, which tell you their strength level.
Here’s a simple breakdown of common grades:
● S275 and S355: These are popular in the UK. They’re great for buildings and bridges.
● Higher Grades: Grades like 500 or 960 are super strong but less common.
● Yield Strengths: Steel grades often have strengths like 195, 235, or 355.
Want to know where these grades are used? Check this table:
Type | Common Grades | Products | Common Applications |
Structural | 33, 36, 40, 50, 55, 60, 70, 80, SAPH440, JAH440W, SPFC440 | Hot Rolled, Galvanized | Construction, agriculture, solar panels, fencing, tubing, corrugated panels, roll-formed applications |
Steel grades don’t just show strength. They also affect how steel bends and stretches. Engineers choose grades based on the project’s needs. For example, bridges need stronger steel than warehouses.
Steel shapes are like building blocks for construction. Each shape has a purpose, like holding up buildings or supporting bridges. You’ve probably seen these shapes before!
Here are the most common ones:
● I-Beams: Shaped like an “I,” they carry heavy loads over long distances.
● Columns: Tall and sturdy, they hold up buildings and spread weight evenly.
● Angles: Useful for bracing and strengthening structures.
● Channels: Add strength and style to frameworks and supports.
Check out this table to see their uses:
Shape | Description | Applications |
Beams | Designed to bear heavy loads and span long distances. | Building frameworks, bridges |
Columns | Provide vertical support and distribute loads effectively. | Urban and industrial developments |
Angles | Versatile and used for bracing and reinforcing structures. | Structural and non-structural applications |
Channels | Incorporated into frameworks and support systems, offering aesthetic appeal. | Frameworks, support systems |
Steel shapes are strong and flexible. They’re used in skyscrapers, stadiums, and more. Engineers love them because they make building faster and easier.
Fun Fact: I-Beams are so strong they’re called “universal beams.” They’re used everywhere, from bridges to factories.
Choosing the right steel shape is important. It’s like picking the best tool for the job. Steel shapes make construction safer and smarter.
Steel structures and structural steel have many benefits. They are widely used in construction. Here’s why they are so popular:
1. Durability and Sustainability
Steel is very strong. It can handle heavy loads, bad weather, and earthquakes. Plus, it’s eco-friendly. Did you know structural steel can be recycled more than 100%? This means it’s reused and improved! Other materials don’t recycle as well and cost more to demolish.
Material Type | Recycling Rate | Demolition Cost (per sq ft) |
Structural Steel | >100% | $0 (value in scrap) |
Other Materials | <100% | $3 - $10 |
Recycling steel saves money and helps the planet. It’s both cost-effective and environmentally friendly.
2. Strength and Flexibility
Steel is strong but can bend without breaking. This makes it great for buildings that face wind or earthquakes. Tall buildings benefit the most. Engineers use tools like ETABS-2013 to design steel structures that resist forces like gravity and wind.
Benefit/Aspect | Description |
Material Selection | High-grade steel improves strength and safety. |
Constructability | Designs follow global standards for safety and ease of building. |
Load Resistance | Steel handles heavy loads and natural forces like wind. |
Composite Materials | Combining steel with concrete makes buildings stronger. |
Software Utilization | Advanced tools ensure designs are accurate and safe. |
Steel structures are not only strong but also designed to handle tough conditions.
3. Cost Efficiency
Steel saves money. Pre-made steel parts lower labor and material costs. They are quick to put together, saving time and money.
4. Versatility
Steel can be shaped into beams, columns, or arches. It works for bridges, stadiums, and skyscrapers. Its flexibility makes it a favorite for architects and engineers.
Even though steel structures and structural steel have many advantages, they also have some challenges. Here’s what to watch out for:
1. Corrosion Risks
a. Steel can rust when exposed to moisture. Rust weakens the steel over time. Corrosion under fireproofing is a hidden problem. It can damage steel connections, especially in wet areas.Rust under fireproofing can cause unseen damage.
b. Predictive tools help find corrosion early for better maintenance.
c. Tests show how rust affects steel during fires.
Engineers work hard to solve these problems, but corrosion is still a challenge.
2. Fireproofing Requirements
a. Steel weakens at high temperatures. Fireproofing is needed to keep buildings safe. Research shows how fire and rust together can harm steel.Fireproofing adds extra costs to projects.
b. Tests show how fire affects steel bolts and joints.
c. Load tests reveal how steel fails under fire.
Fireproofing is important but makes construction more expensive and complex.
3. Construction Risks
a. Building with steel isn’t always easy. Construction sites can be unpredictable, causing risks.Internal risks, like technical problems, are common in steel projects.
b. External risks, like bad weather or delays, can slow progress.
c. Managing risks needs careful planning and skilled workers.
These risks require good management to avoid problems.
4. Cost of Maintenance
Steel needs regular care. Rust and fireproofing add to maintenance costs. Without proper care, steel structures may not last as long.
Steel structures and structural steel are amazing but come with challenges. Knowing these issues helps you plan better for your projects.
Steel structures and structural steel are key in modern construction. From tall skyscrapers to large warehouses, they are strong and versatile. Let’s see how they’re used in tall buildings, bridges, and warehouses.
Ever wonder how skyscrapers stay tall and strong? Steel structures are the answer. Steel is strong but light, so buildings can be tall and safe. It also bends slightly, handling wind and earthquakes well. This makes it perfect for tall buildings.
In 2023, over 60.5% of the structural steel market was for non-residential buildings, like skyscrapers. Governments invested in big projects, boosting demand. New technology, like high-strength low-alloy (HSLA) steels, made steel stronger and more eco-friendly. These changes make steel cheaper and longer-lasting, keeping it popular for cities.
Steel also speeds up building. Pre-made steel parts are quick to put together. Next time you see a city skyline, remember steel makes those tall buildings possible.
Bridges are another place where steel shines. Suspension and cable-stayed bridges use steel for strength and flexibility. Steel cables and beams spread weight evenly, letting bridges stretch far without extra supports.
Here’s a simple table comparing bridge types:
Bridge Type | Efficiency (kg/(L x m²)) | Cost ($/(L x m²)) |
Suspension Bridges | 0.62 | 6.51 |
Cable-Stayed Bridges | 0.62 | 7.45 |
Steel Continuous Bridges | 2.48 – 2.55 | 9.19 |
Steel suspension and cable-stayed bridges are efficient and affordable. That’s why they’re used for famous bridges like the Golden Gate Bridge. Steel lasts a long time, handling heavy loads and bad weather.

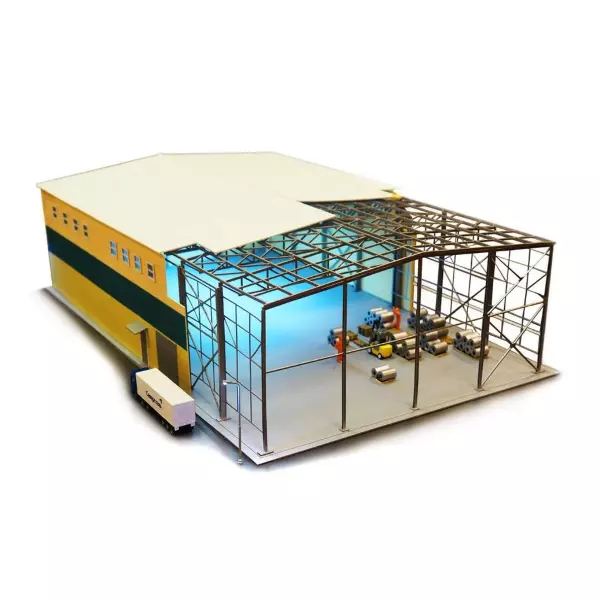

For sheds and warehouses, steel structures are the best choice. They create big open spaces without columns, making storage easier. Steel is light, so foundations cost less, saving money.
In 2023, heavy structural steel made up 51.1% of the global market. Warehouses and factories used it the most. Governments in North America and Asia Pacific invested in these projects, increasing demand.
Steel sheds and warehouses are easy to change or expand. They also need less maintenance, saving money over time. Whether storing goods or machines, steel structures are practical and long-lasting.
Steel is changing how homes are built today. If you want a house that’s strong and eco-friendly, structural steel is a great choice. Unlike wood or bricks, steel lasts longer and is more flexible. That’s why more homes now use steel for their frames.
Why is steel so good for houses? First, it’s very durable. Steel doesn’t crack, rot, or warp like wood. It also keeps pests like termites away, which can ruin other materials. Steel can handle tough weather, like heavy snow or strong winds. This makes it perfect for homes in disaster-prone areas.
Another big plus is speed. Steel parts are made in factories and quickly put together on-site. This saves time and reduces waste. Imagine building your home in half the usual time. That’s the magic of steel!
Steel is also eco-friendly. It’s 100% recyclable, so it can be reused without losing quality. Many builders now focus on green materials, and steel fits perfectly. By choosing steel, you’re helping the planet while building your home.
Here’s where steel is often used in houses:
Structure Type | Common Uses |
Steel Frames | Walls, roofs, and main structures |
Light Gauge Steel | Prefab homes and modular buildings |
Steel Reinforcements | Strong foundations and earthquake safety |
Steel homes can match any style. Whether you like modern or classic designs, steel works for both. Architects love it because it allows creative and unique ideas.
Steel is key to building modern cities. From roads to airports, steel makes large projects possible. Its strength and flexibility make it perfect for big structures.
Bridges are a great example. Steel spans long distances without needing extra supports. This makes it ideal for suspension and cable-stayed bridges. Famous bridges like the Golden Gate and Brooklyn Bridge use steel for their strength and durability.
Airports and train stations also rely on steel. Steel space frames create open areas without columns, making room for large crowds. Steel also speeds up construction, which is important for tight deadlines.
Here are some common infrastructure projects that use steel:
● Bridges and overpasses
● Parking garages
● Airports and train stations
● Power plants and factories
Steel is also eco-friendly, which is why it’s popular in infrastructure. It’s recyclable and lowers carbon emissions. Governments and builders choose steel to support green development.
As cities grow, the need for structural steel increases. From bridges to airports, steel ensures these projects last for years.
Note: Steel isn’t just a material—it’s a way to build stronger and greener cities.
Steel structures begin with a smart plan. Engineers and architects work together to design buildings that fit your needs. They think about the building’s use, location, and weather conditions. This step mixes creativity with practical ideas.
Modern tools like Building Information Modeling (BIM) make planning easier. BIM shows the whole structure before building starts. It helps teams find problems early, saving time and money.
Research shows good planning makes projects successful. For example, studies on steel framing show that clear designs and teamwork improve productivity. Teams that communicate well avoid costly mistakes later.
Tip: A strong design saves money and keeps your building safe for years.
After planning, factories make the steel parts. They cut, shape, and weld pieces with machines for perfect fits.
Next, the steel parts go to the site for building. Workers use cranes to put the pieces together, like a big puzzle. This is fast because most work happens in factories.
Studies show organized teams finish projects faster and cheaper. Using methods like light steel framing and metal deck roofs helps save time and money. Here’s how these technologies help:
Technology | Benefits |
Light Steel Framing | Makes building faster and easier |
Metal Deck Roof Technology | Adds strength and speeds up work |
Note: Smart building methods save time, cut waste, and help the environment.
Steel buildings need care after they’re built. Regular checks keep them strong and safe. Workers look for rust, check joints, and add protective coatings.
New tools like machine learning make maintenance smarter. These tools predict when steel might need fixing. For example, algorithms can tell when a part needs replacing. This helps plan repairs early.
Steel lasts a long time and can be reused. Studies show steel reduces waste and saves resources, making it eco-friendly.
Tip: Regular care keeps your building strong and makes warranty claims easier.
Steel structures and structural steel are changing how we build. By 2025, new technology and eco-friendly ideas will make steel more important. Companies are creating better ways to use steel, while growing countries need it for factories and buildings. The cost of structural steel is going up because it’s used in green energy and quick-build projects. These changes prove steel will help make cities stronger and better for the planet. Steel isn’t just tough—it’s shaping the future of how we live and build.
Q1: Why are steel structures so strong?
Steel is tough and bends without breaking. It handles bad weather well. Coatings stop rust and fire damage, making it last longer.
Q2: Can steel buildings survive earthquakes?
Yes! Steel bends to absorb earthquake forces. Engineers design steel buildings to stay safe during quakes.
Q3: Is structural steel good for the environment?
Yes! Structural steel can be recycled completely. Reusing steel cuts waste and pollution, making it eco-friendly.
Q4: Why is steel used in tall buildings?
Steel is strong but light, so skyscrapers can be tall and safe. It also handles wind and earthquakes well.
Q5: What happens to steel in a fire?
Steel gets weaker in heat, so fireproofing is needed. Special coatings protect steel during fires to keep buildings safe.
Q6: Is building with steel expensive?
Steel saves money over time. Pre-made parts make building faster and cheaper. Steel’s strength means fewer repairs later.
Q7: What steel shapes are used in construction?
Common shapes include I-beams, columns, angles, and channels. Each shape helps support weight or adds stability.
Q8: Can steel buildings be designed differently?
Yes! Steel can be shaped into beams, arches, or decorations. It’s great for creative building designs.
